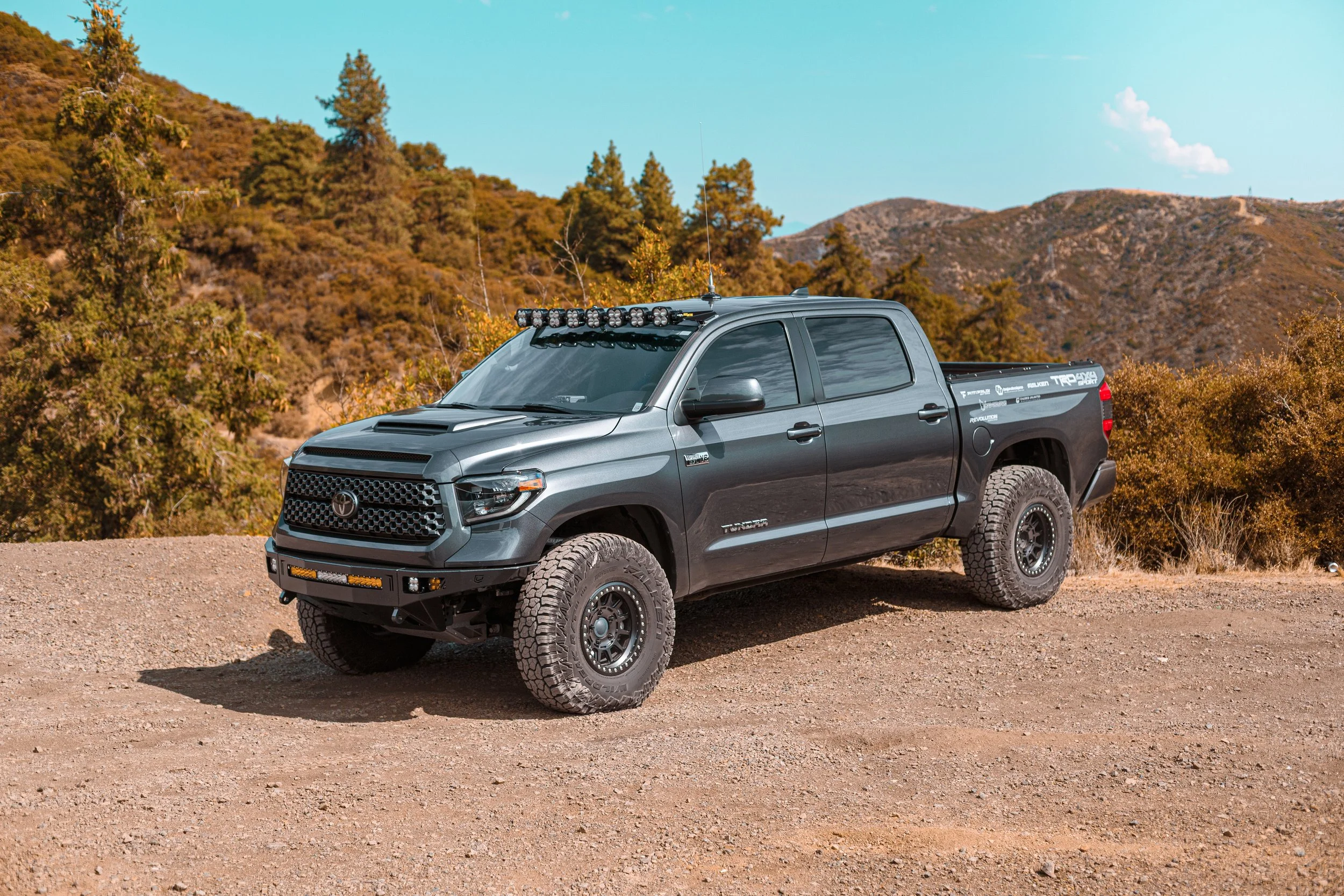

2007-2021 Tundra Roof Light Bar Mounting System

2007-2021 Tundra 50” Roof Light Bar Mounting System

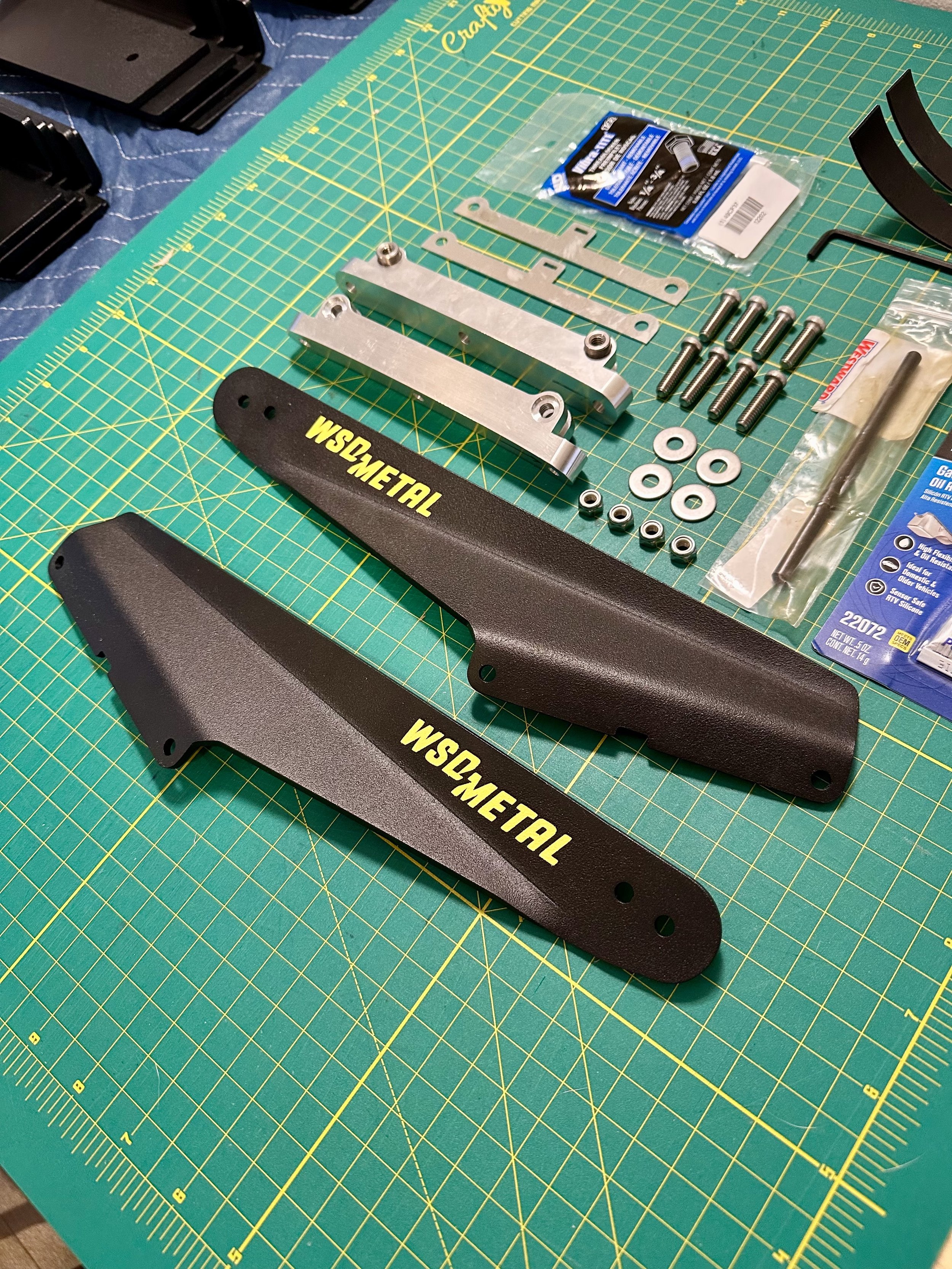

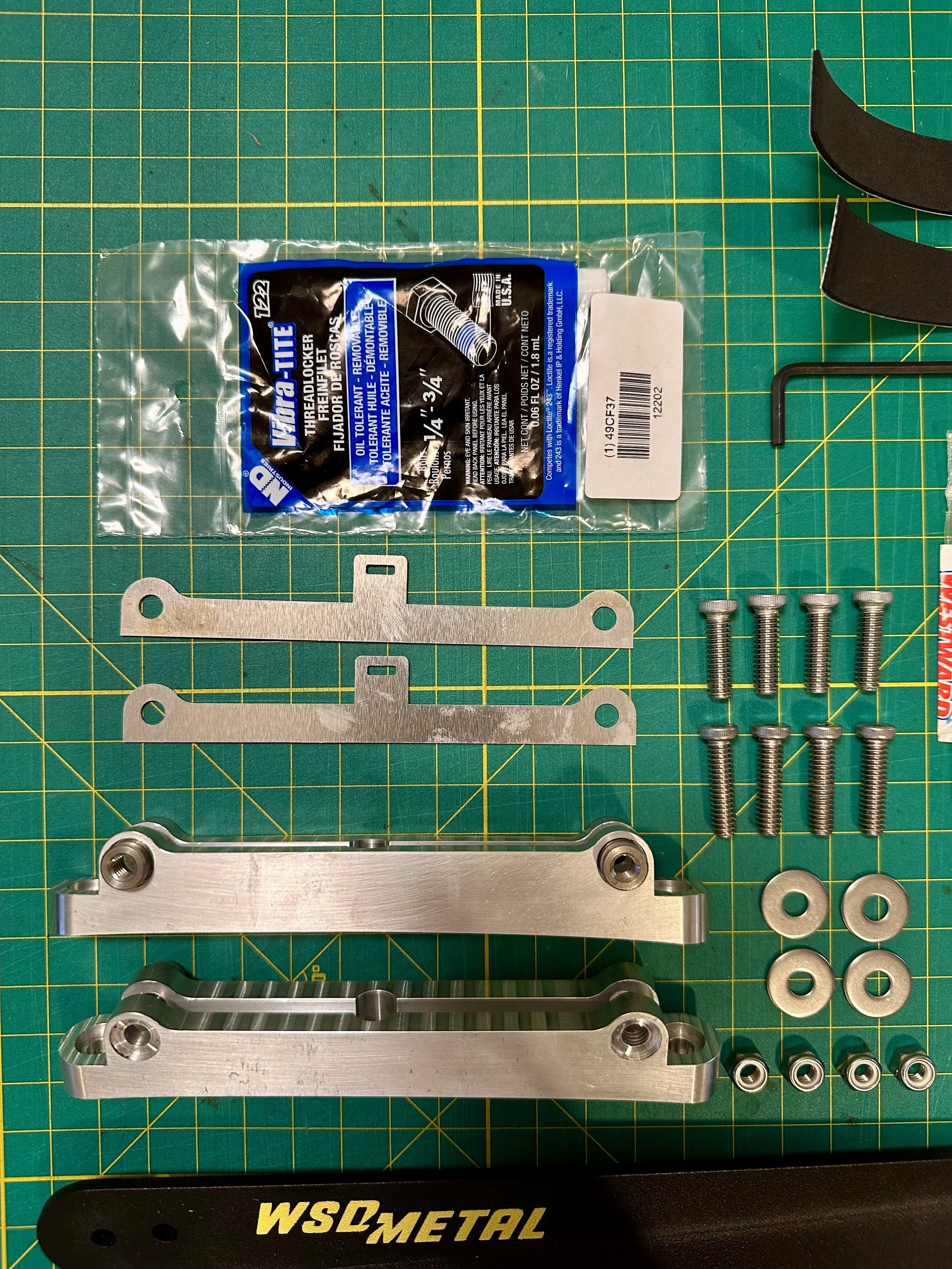

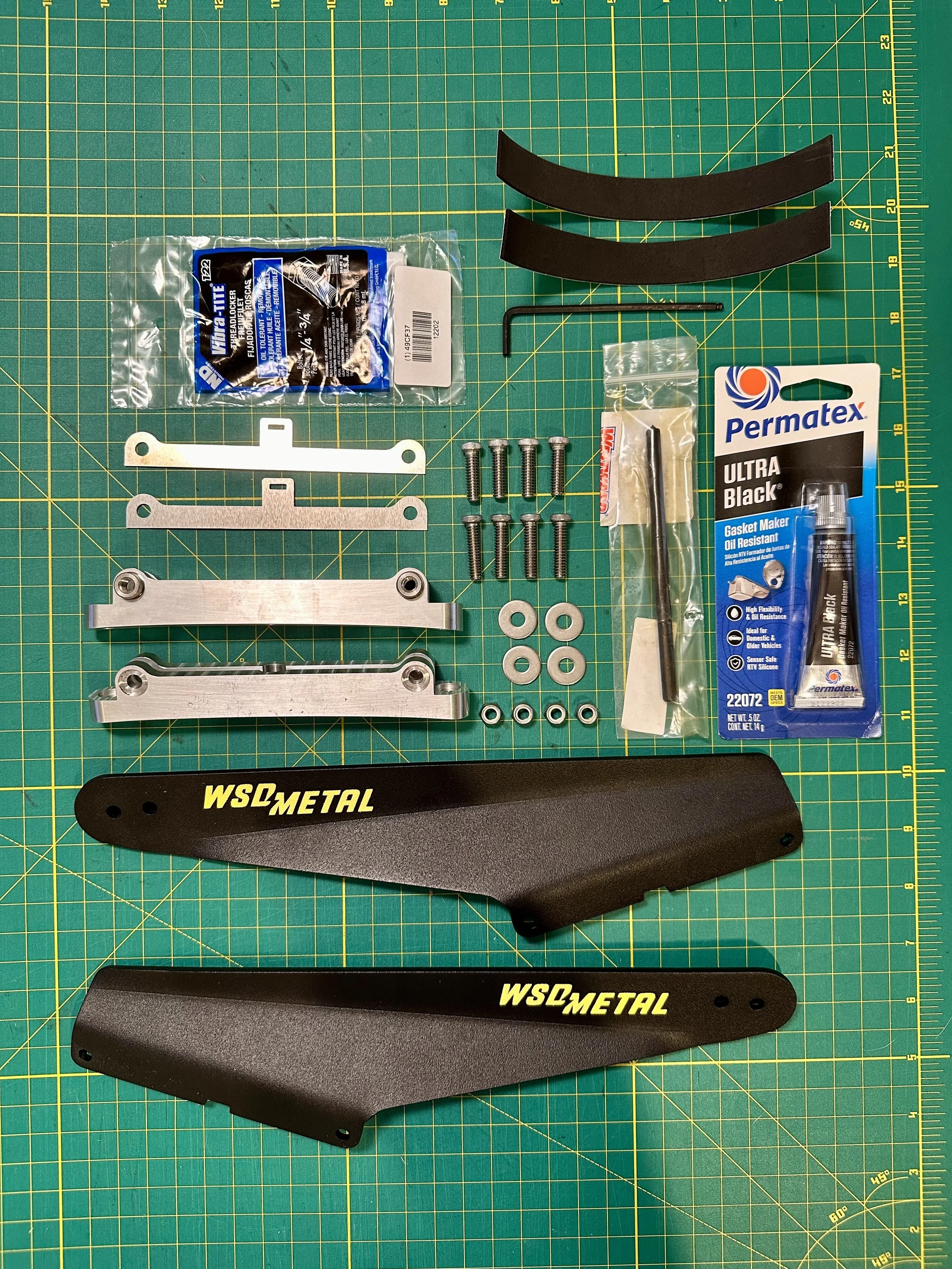

Included Components:

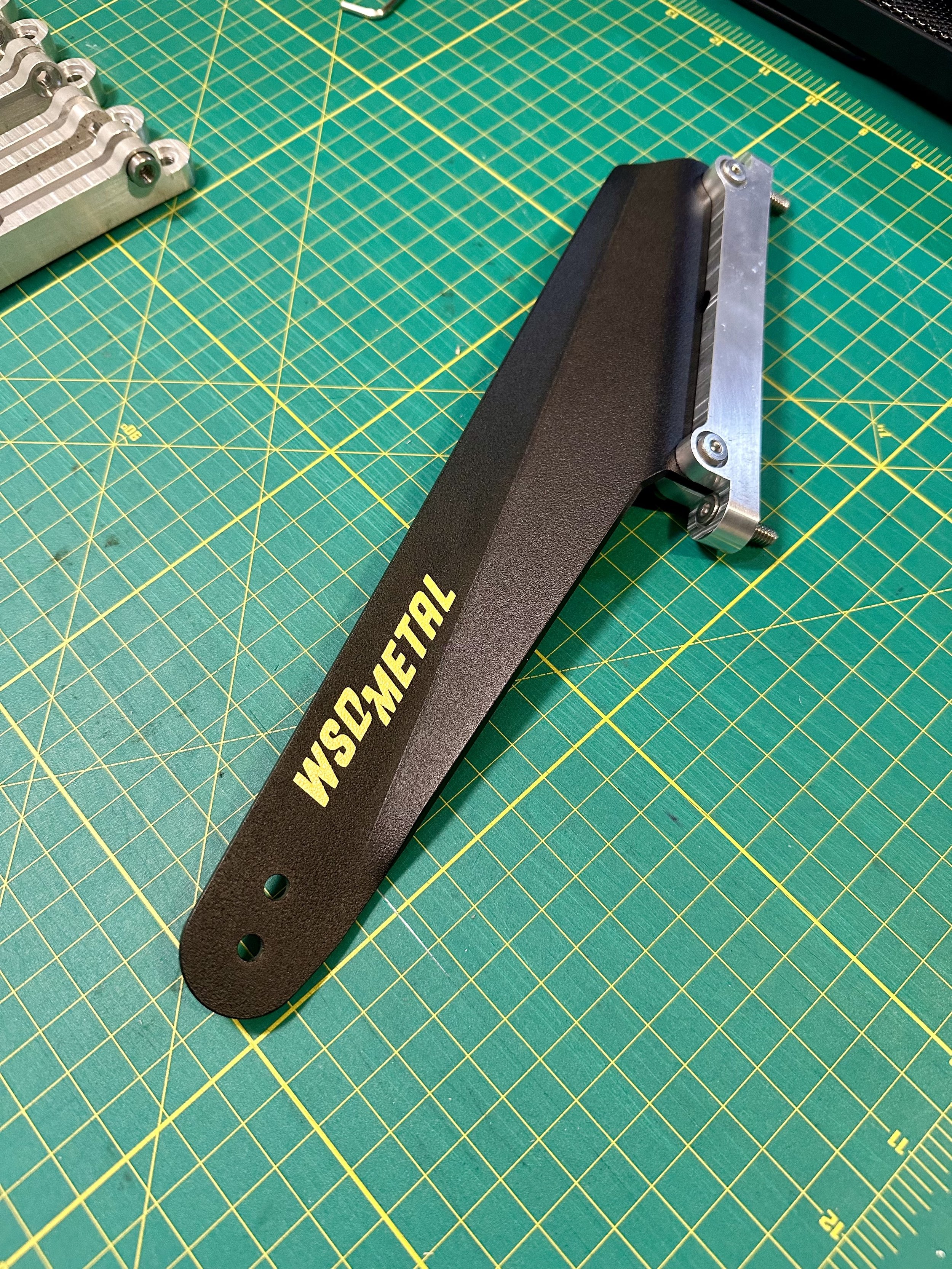

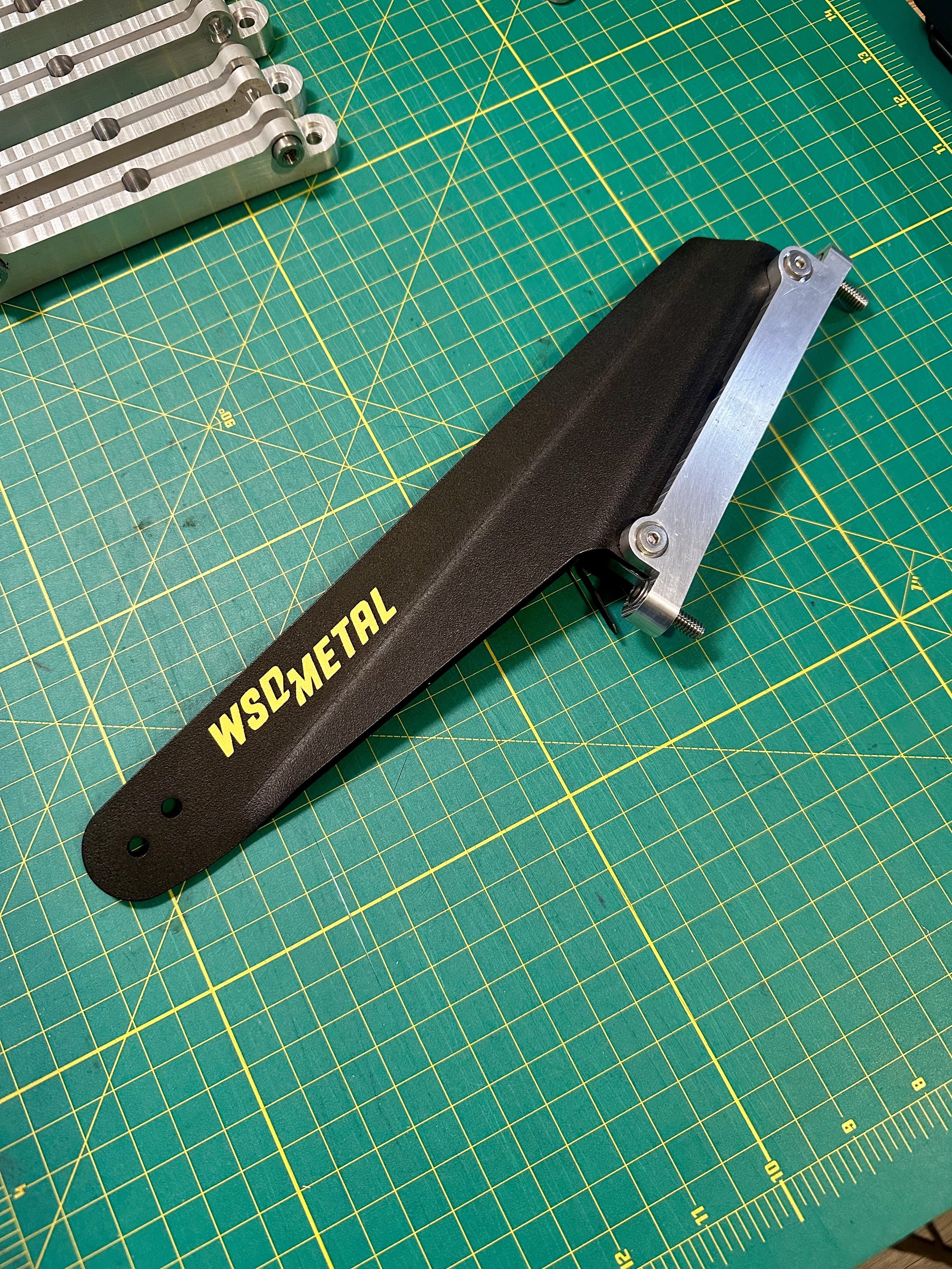

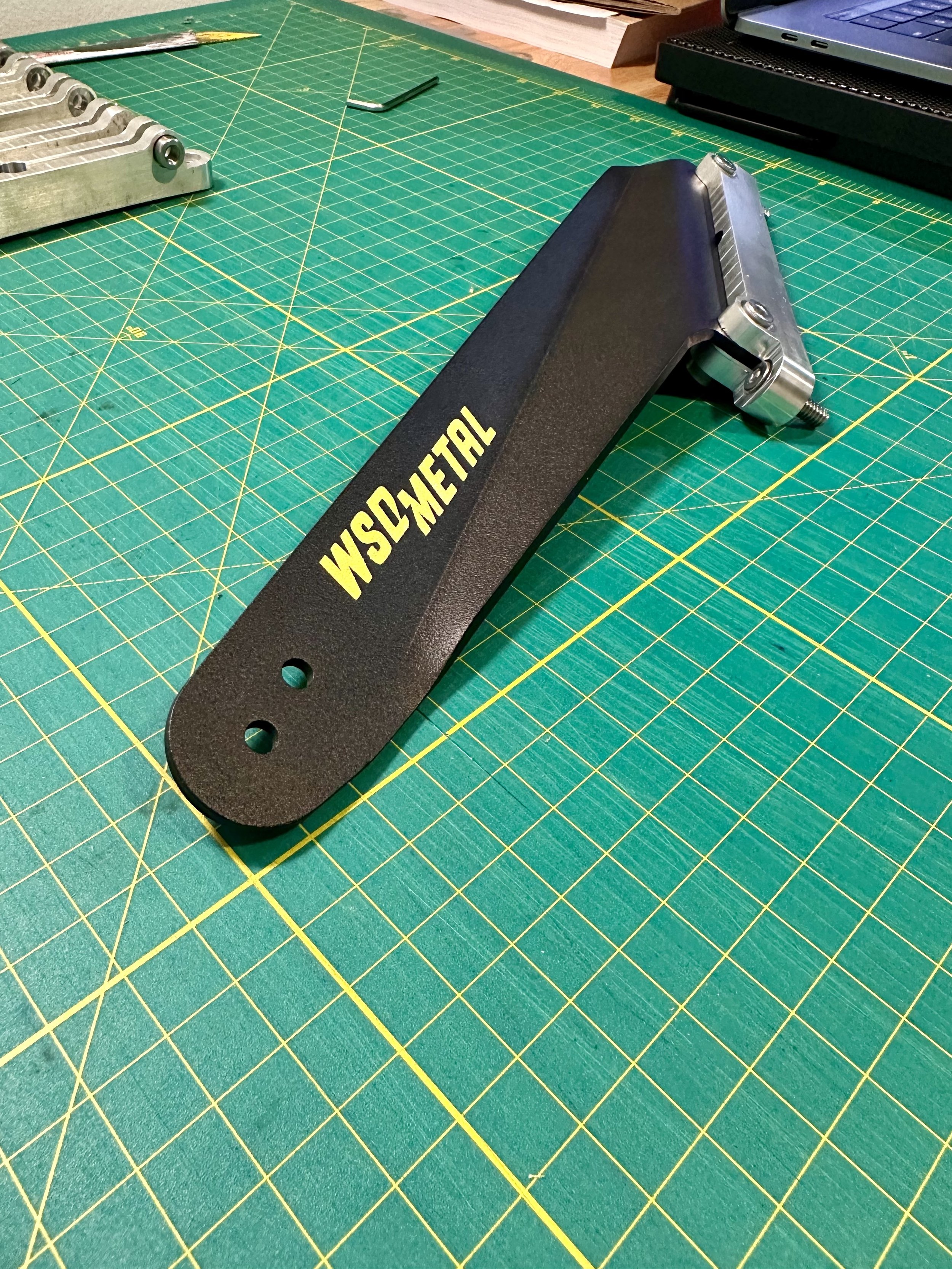

Cantilever Mounting Brackets (x2)
- 3/16" thick steel plate (CNC lasercut & bent)
- heavy duty textured satin black powdercoat

Billet Mounting Bases (x2)
- 6061-T6 billet aluminum (CNC machined)
- recessed stainless steel threaded inserts

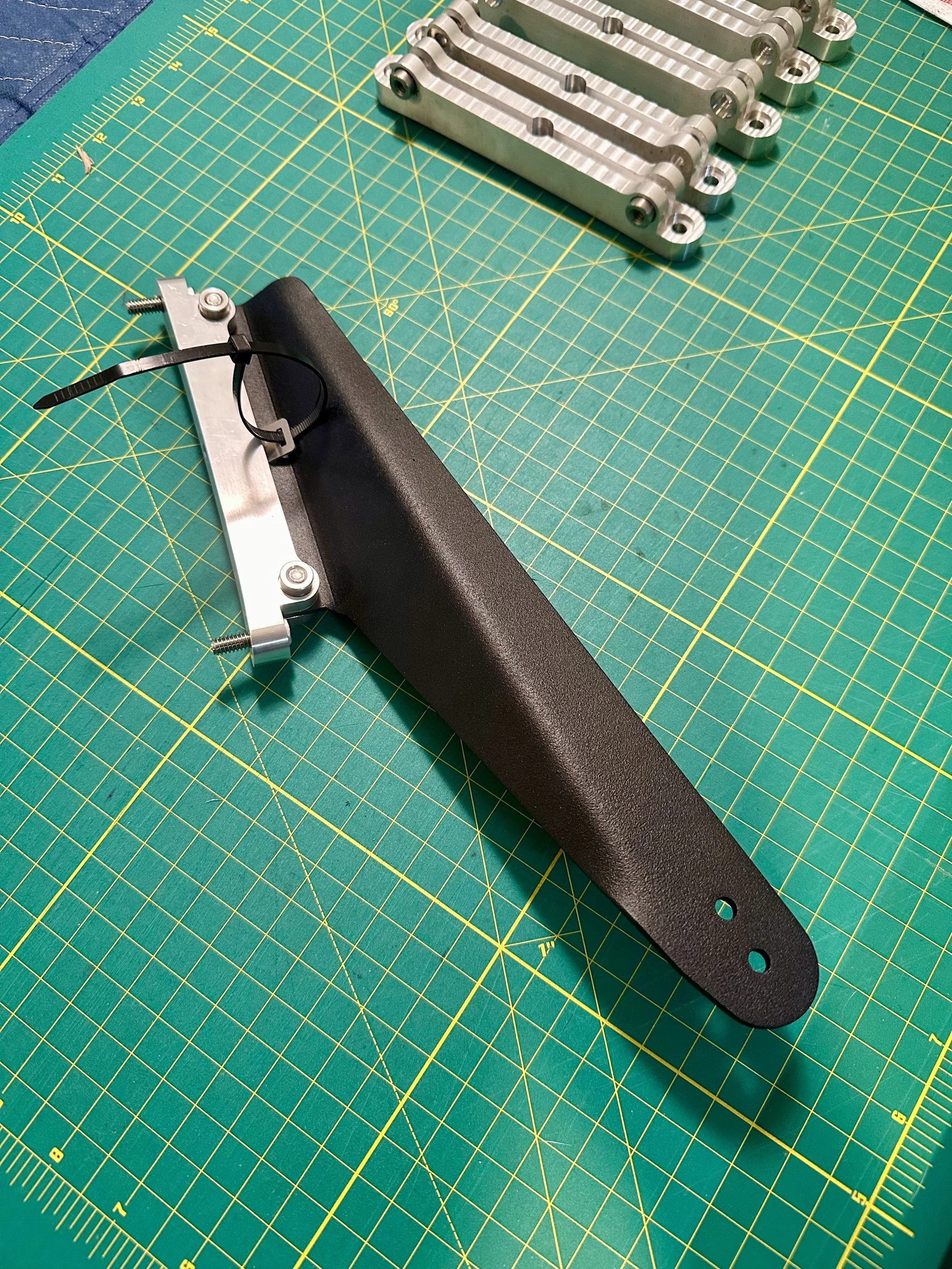

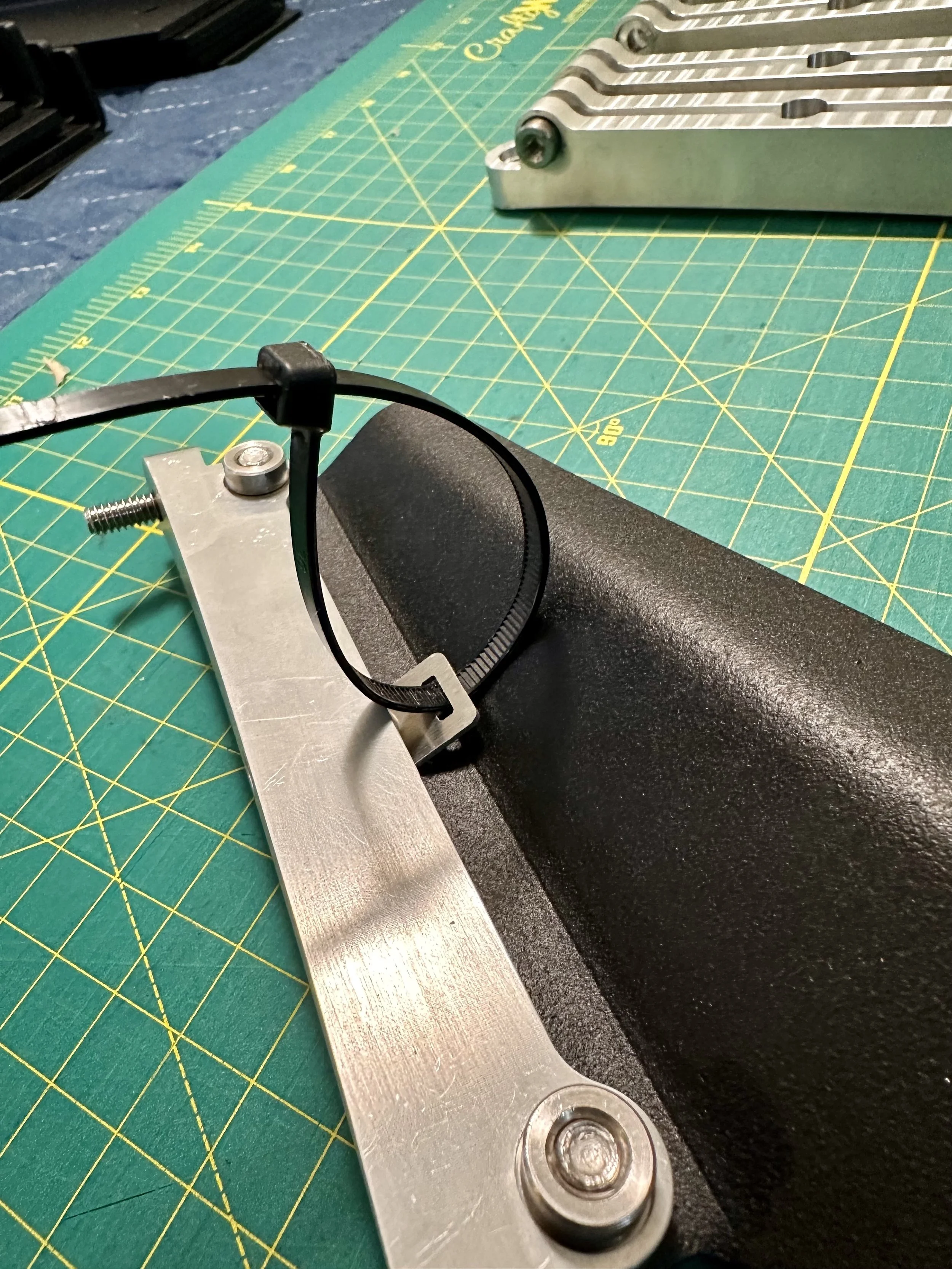

- bracket shims with wire management tabs
- zip ties

Hardware:
- high-strength stainless steel hardware
- closed cell polyurethane foam gaskets (x2)

Installation Tools & Supplies (included):
- 1/4" transfer punch
- threadlock
- RTV silicone
- 1/8" ball-end hex key
- drill template

Only additional tools required for installation:
- power drill w/ 1/4" drill bit
- ratchet w/ 7/16" socket

- hammer
- masking tape (optional but recommended)

Installation Process Overview:
- remove A-pillar trim and 2 front grab handles
- pull back headliner
- drill four 1/4" holes in roof channel
- bolt on brackets

100% American-made

Features:

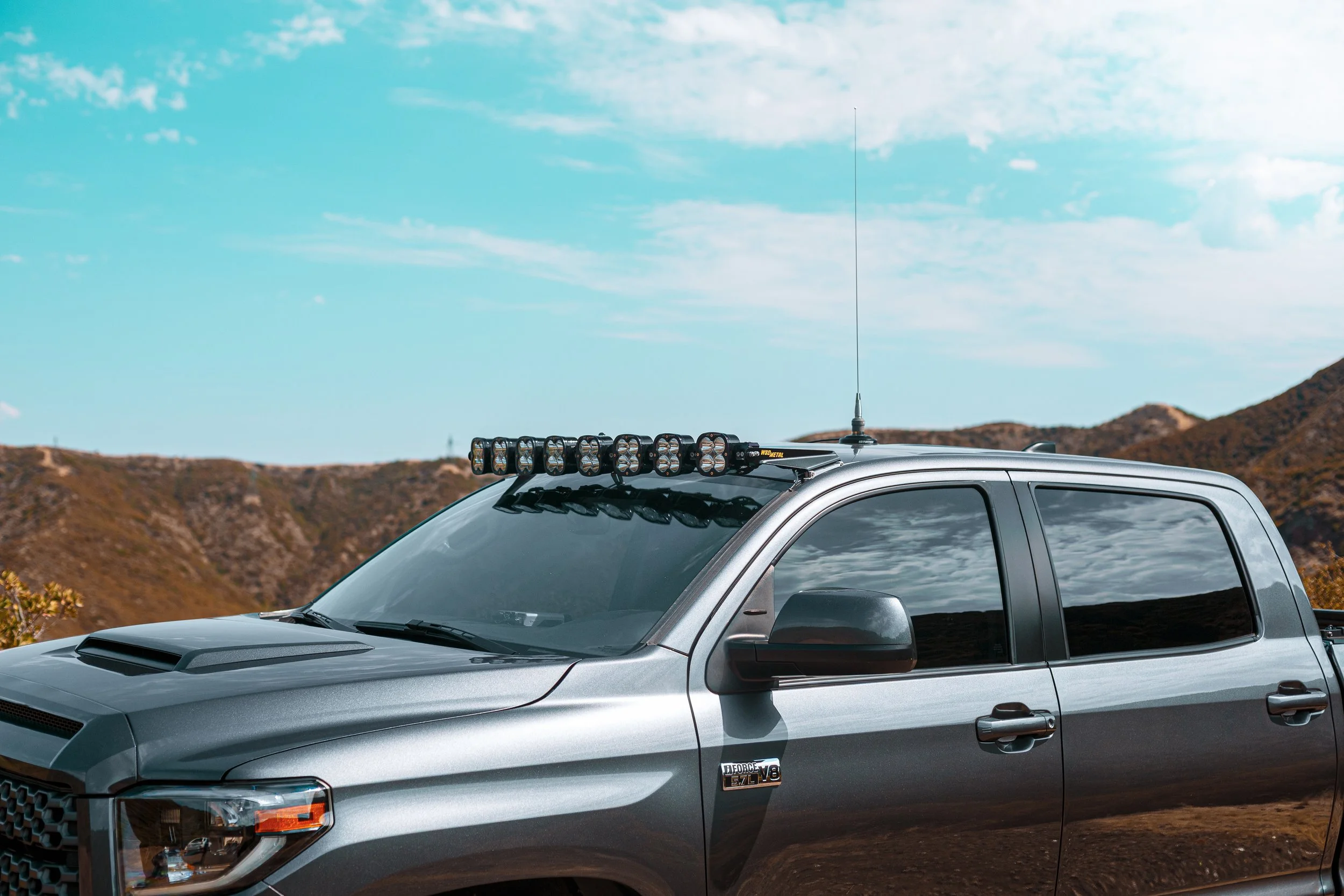

- low profile (no added vehicle height)
- unmatched stability (does not vibrate or rattle like other mounts)

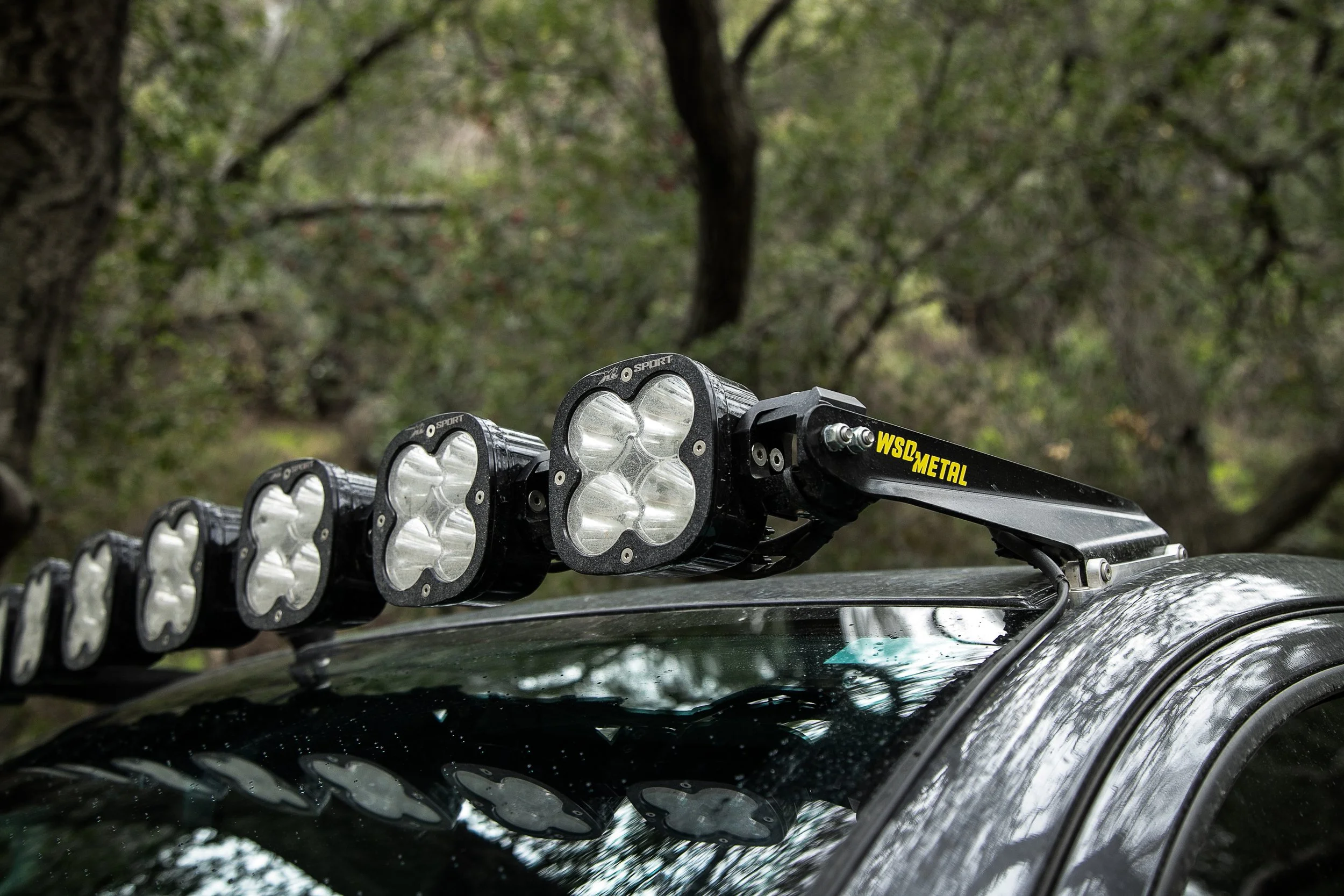

Designed for the Baja Designs 50" XL Linkable lightbar, but adaptable to other curved 50" low profile lightbars.https://www.bajadesigns.com/products/xl-pro-linkable-led-light-bar-universal/?sku=74-0014

$375 shipped (within US, Alaska & Hawaii extra)
$350 picked up in Pasadena, CA 91105
